Architecture

A self-hosted Dreadnode deployment is a single Helm release: two platform services, three data stores, and a sandbox runtime, all inside your Kubernetes cluster. User traffic crosses the cluster boundary through the ingress controller over HTTP or HTTPS; production deployments should use HTTPS. Replicated communication uses outbound HTTPS.

flowchart TB
  Client["Browser · CLI · SDK"]

  subgraph cluster["Kubernetes cluster"]
    direction TB
    Ingress["Ingress controller"]
    Frontend["Frontend :3000"]
    Docs["Docs :8080"]
    API["API :8000"]

    subgraph data["Data stores"]
      Postgres[("PostgreSQL<br/>:5432")]
      ClickHouse[("ClickHouse<br/>:8123")]
      MinIO[("MinIO<br/>:9000")]
    end

    subgraph sandbox["Sandbox runtime"]
      Server["Sandbox server :80"]
      Gateway["Sandbox gateway :80"]
      Controller["Sandbox controller"]
      Pods["Sandbox pods"]
    end
  end

  Replicated["Replicated endpoints<br/>images · license · updates"]
  Optional["Optional external services<br/>SMTP · OAuth · Logfire · E2B"]

  Client -- "443 · &lt;your-domain&gt;<br/>storage.&lt;your-domain&gt;<br/>*.sandbox.&lt;your-domain&gt;" --> Ingress
  Ingress -- "/" --> Frontend
  Ingress -- "/docs" --> Docs
  Ingress -- "/api" --> API
  Ingress -- "storage.&lt;your-domain&gt;" --> MinIO
  Ingress -- "*.sandbox.&lt;your-domain&gt;" --> Gateway
  Gateway -- "HTTP · WebSocket" --> Pods
  Frontend -- "SSR" --> API
  API --> Postgres
  API --> ClickHouse
  API --> MinIO
  API -- "create / delete · exec · files" --> Server
  Server -- "BatchSandbox CRs" --> Controller
  Server -. "proxied exec" .-> Pods
  Controller -- "creates" --> Pods
  cluster -. "outbound HTTPS" .-> Replicated
  API -. "outbound, if enabled" .-> Optional

  classDef external stroke-dasharray: 5 5
  class Replicated,Optional external
  style cluster fill:transparent
  style data fill:transparent
  style sandbox fill:transparent

Four trust boundaries matter for review:

• External clients → ingress. All user traffic enters through the ingress controller on 443 (or 80). Nothing else is exposed.
• In-cluster services. Every service is ClusterIP-only. The data stores, the sandbox lifecycle server, and the sandbox controller are reachable only from inside the cluster.
• Browsers → sandbox runtimes. The sandbox gateway is the one exception to the boundary above: it accepts ingress traffic on *.sandbox.<your-domain> and forwards it to a runtime port inside a sandbox pod. It routes on the Host header without minting credentials — runtime HTTP endpoints require the bearer token issued when the runtime starts, and browser WebSocket handshakes require a short-lived, single-use ticket exchanged for that token. The lifecycle server’s own API stays off the wildcard Ingress.
• Cluster → internet. Egress is limited to Replicated endpoints for image pulls and updates, plus any optional external services you enable. The platform receives no inbound connections from Dreadnode.

Request routing

The chart emits standard networking.k8s.io/v1 Ingress resources across three authorities:

Host	Path	Backend service	Port
<your-domain>	/	Frontend	3000
<your-domain>	/api	API	8000
<your-domain>	/docs	Docs	8080
storage.<your-domain>	/	MinIO S3 API	9000
*.sandbox.<your-domain>	/	Sandbox gateway	80

MinIO gets its own subdomain because S3 SDKs sign requests against host+path — path-prefix routing breaks signature validation. Browsers hit storage.<your-domain> directly when downloading artifacts through presigned URLs.

The sandbox gateway takes a wildcard because each runtime gets its own hostname: <sandbox-id>-<port>.sandbox.<your-domain>. The gateway parses that first DNS label, resolves it against a cluster-wide BatchSandbox watch, and proxies the request — path, query, and WebSocket upgrade preserved — to the matching pod and port. An unknown or ambiguous identifier fails closed with a 404. All three authorities must resolve and be covered by your TLS certificate; see TLS certificates.

The frontend also calls the API service directly over the cluster network for server-side rendering, bypassing the ingress hairpin.

Inside the cluster

Platform services. The frontend is a SvelteKit SSR server; the API is a FastAPI application that owns all business logic, authentication, and data access. Only these two services (plus MinIO) receive ingress traffic.

Data stores. PostgreSQL holds transactional data, ClickHouse holds traces and analytics, and MinIO provides S3 object storage for packages, artifacts, and files. All three run in-cluster by default with persistent volumes, and each can be swapped for an external service.

Sandbox runtime. Agent code runs in isolated sandbox pods, created on demand:

1. The API asks the sandbox server (a lifecycle HTTP API) to create a sandbox.
2. The sandbox server writes a BatchSandbox custom resource.
3. The sandbox controller (a Kubernetes operator) reconciles the resource into a pod.
4. Command execution, file transfer, and health checks go from the API to an exec daemon inside each sandbox pod, proxied through the sandbox server. The API never depends on wildcard DNS resolving from inside the cluster.
5. Browser traffic to a runtime port takes the other path: ingress → sandbox gateway → pod.

Sandbox pods run in the release namespace by default and are created through the Kubernetes API using the controller’s RBAC-scoped service account. The chart ships no NetworkPolicies — sandbox pods follow your cluster’s default egress policy. Add your own NetworkPolicies if agent code must not reach the network.

Kubernetes footprint

A default install creates these workloads, all in the release namespace:

Component	Kind	Replicas	Persistence
API	Deployment	1	—
Frontend	Deployment	1	—
Docs	Deployment	1	—
PostgreSQL	StatefulSet	1	8 Gi PVC
ClickHouse	StatefulSet	1	10 Gi PVC
MinIO	StatefulSet	1	10 Gi PVC
Sandbox server	Deployment	2	—
Sandbox gateway	Deployment	2	—
Sandbox controller	Deployment	1	—
Replicated SDK	Deployment	1	—

The Replicated SDK ships with installs from the Replicated registry — both install paths — but is disabled in the raw chart. Database migrations run as an init container on the API pod, and a post-install hook Job creates the MinIO buckets — there are no long-lived Jobs or CronJobs. The chart installs no admission webhooks and no autoscalers. Credentials are auto-generated as Kubernetes Secrets; the Install with Helm page lists them.

Nine resources are cluster-scoped — everything else stays in the namespace:

• Three CRDs — batchsandboxes, pools, and sandboxsnapshots, all in the sandbox.opensandbox.io group. All are kept on uninstall so in-flight sandbox resources aren’t orphaned.
• Three ClusterRole/ClusterRoleBinding pairs — one for the sandbox controller (pods, events, and the sandbox CRDs), one for the sandbox server (pods, services, configmaps, events, the sandbox CRDs, and Secret create/delete for sandbox provisioning), and one for the sandbox gateway (read-only get/list/watch on batchsandboxes, so Host routes fail closed rather than resolving an identifier it cannot see).

The API and frontend service accounts carry no RBAC rules — they exist for cloud workload identity annotations (for example, IAM roles for external data stores).

Network requirements

Inbound:

Port	Target	Required for
443, 80	Ingress controller	All user traffic
30000	Admin Console	Embedded Cluster installs only

DNS — three records pointing at your ingress (or the VM for Embedded Cluster): <your-domain>, storage.<your-domain>, and *.sandbox.<your-domain>. Installs running E2B sandboxes instead of OpenSandbox need only the first two.

Outbound HTTPS:

Endpoint	Purpose
registry.replicated.com	Helm chart pulls (Helm CLI installs)
proxy.enterprise.dreadnode.io	Container image pulls (license-authenticated)
replicated.app	Installer download, license validation
updates.enterprise.dreadnode.io	Application update metadata

Air-gapped installs need none of these at runtime, with one caveat on the Helm CLI path: the Replicated SDK keeps calling replicated.app until you set replicated.isAirgap. See Air-gapped deployments below.

Internal service ports (all ClusterIP):

Service	Port	Protocol	Ingress-backed
API	8000	HTTP	<your-domain>/api
Frontend	3000	HTTP	<your-domain>/
PostgreSQL	5432	PostgreSQL	No
ClickHouse	8123, 9000	HTTP, native TCP	No
MinIO	9000	S3 API	storage.<your-domain>
Sandbox server	80	HTTP	No
Sandbox gateway	80	HTTP, WebSocket	*.sandbox.<your-domain>

Replicated components

Installs from the Replicated registry run a small SDK deployment alongside the platform. It reports license state and instance telemetry to replicated.app and checks for updates — outbound only. Container images pull through proxy.enterprise.dreadnode.io using a pull secret bound to your license; the chart wires this automatically.

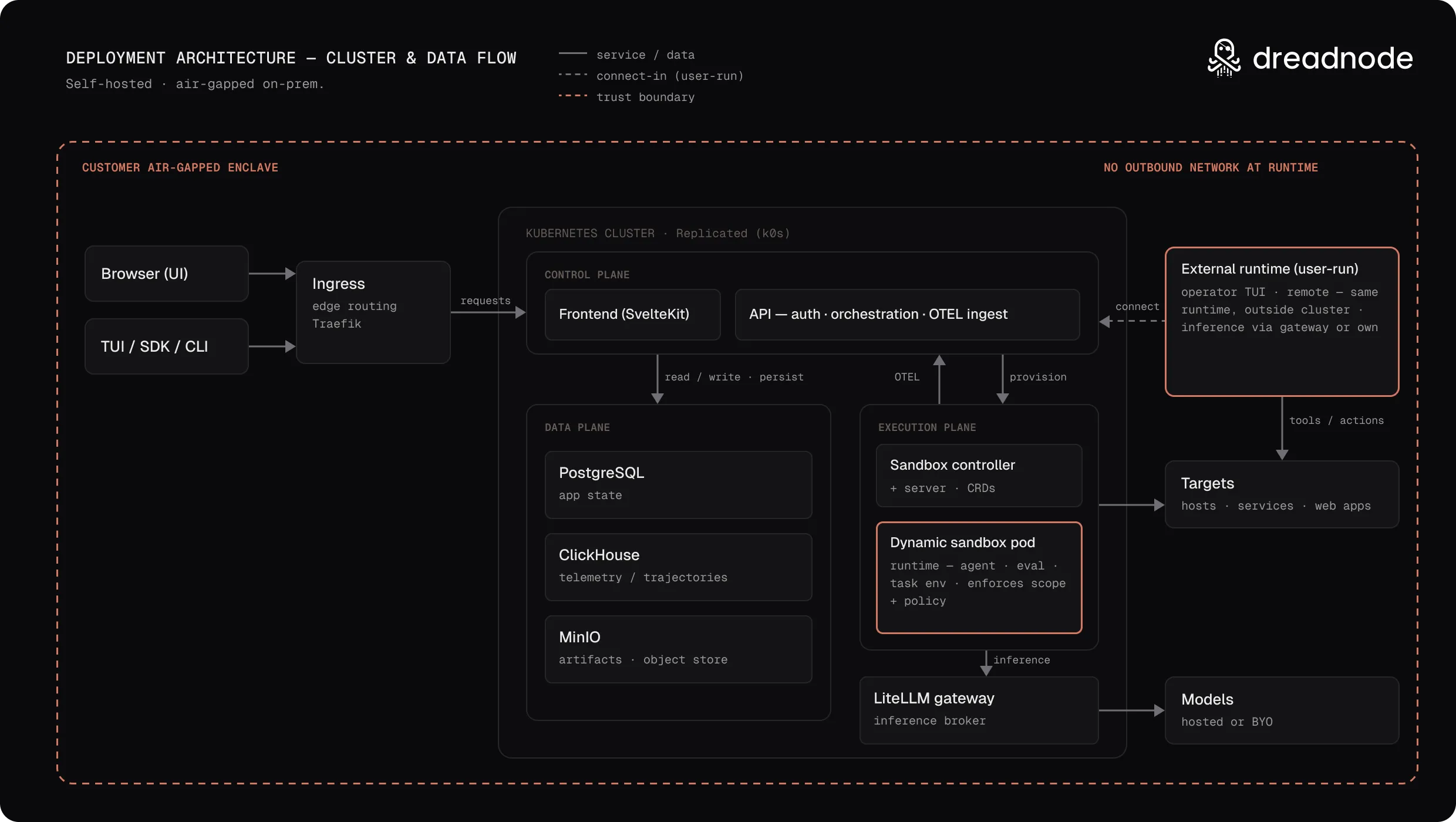

Air-gapped deployments

For environments with no outbound network at all, container images arrive ahead of the install rather than being pulled during it — inside an air-gap bundle on the Embedded Cluster and KOTS paths, or mirrored into your own registry for a Helm CLI install. At runtime nothing leaves your network: the platform, runtimes, models, and the targets you assess all sit inside your enclave.

Air gap requires an entitlement on your license and a release with a bundle built for it, both arranged with us up front. See Install in an air-gapped environment for the prerequisites and the procedure for each path.

Optional external services

Everything below is disabled by default. Enabling one adds an outbound connection from the API.

Service	Replaces or adds
External PostgreSQL	Replaces the in-cluster database (e.g. RDS)
External ClickHouse	Replaces in-cluster analytics (e.g. ClickHouse Cloud)
External S3	Replaces MinIO (e.g. AWS S3)
SMTP relay	Adds transactional email delivery
OAuth providers	Adds GitHub, Google, or OIDC login
LLM gateway (LiteLLM)	Adds model inference for agents and chat
Logfire	Adds observability export
E2B	Replaces the in-cluster sandbox runtime

Helm CLI vs Embedded Cluster

Both install paths deploy the same chart. The difference is who provides the infrastructure below it:

Layer	Helm CLI	Embedded Cluster
Kubernetes	You (1.28+)	Installer (k0s)
Ingress controller	You (Traefik recommended)	Installer (Traefik, host ports 80/443)
Storage	You (any StorageClass)	Installer (OpenEBS)
DNS and app TLS	You	You (DNS to the VM; TLS Secret in kotsadm)
Configuration	values.yaml	Admin Console or KOTS ConfigValues

For Helm CLI, the diagram above is exact — your ingress controller and load balancer sit in front. For Embedded Cluster, everything runs on one VM: Traefik binds ports 80/443 directly on the host, and the Admin Console adds the one extra inbound port, 30000. The application TLS Secret secures Dreadnode on port 443; the Admin Console has separate TLS configuration.
